Roll Grinder Machines

         We are the specialists in upgrades and custom re-built roll grinders for steel, aluminum, copper and paper industries.
         Apart from successful projects we offer solutions for occasional problems related to machine and roll finish.
         This gives unique advantage to our customers due to our proximity.

Roll Grinder Upgrades

Roll grinder upgrade-retrofit

       Upgrades your old machine to new technology system with new CNC controller, new measuring system, etc. or mechanical recondition.

Customer-built Roll Grinder

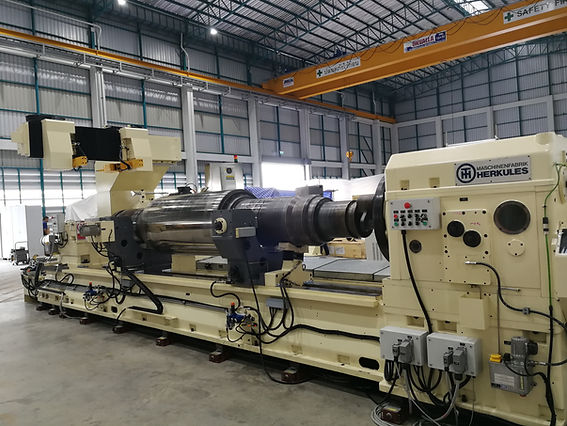

Re-built roll grinder

       Supply new custom re-built machine with new system upgrades and mechanical recondition to save your budget more than 60% instead of buying new machine.

Retrofit Package of Roll Grinder.

New electrical Main Cabinet.png

Basic Electrical retrofit package typically includes:  ​

  • CNC Design ROLLGrind Software for grinding and measuring.​

  • Siemens SINUMERIK 840Dsl/SINUMERIK ONE CNC System and drives and motors.​

  • Replacement cables and sensors​

  • Electrical Cabinet and Operator Console

Electrical Cabinet.jpg

Advantages:​

  • Well proven Turnkey Solution​

  • Fast Delivery for equipment 5-7 months​

  • Short Machine Downtime 4-6 weeks (Pomini)​

  • Installation and reconditioning work at site.​

  • Local Service and Support

Options:​

  • Mechanical Refurbishing , Levelling and Alignment​

  • New mechanical parts for machine​

  • Integrated Roll Defect Scanning System (Lismar or Innerspec)​

  • Wheel Balancing System​

  • Roll Database with 2 way communication.​

  • Roll Measurement Systems


Roll Grinder service and solutions


Measuring system.
We can provide new roll measuring system with profile error compensation function to correct the roll profile error.

Roll grinder measuring system
Farrel Roll grinder with measuring unit
Waldrid Siegen roll grinder machine

Coolant system.
We can provide new coolant filtration system for roll grinder machine.

Roll grinder coolant system
Naxos union roll grinder machine
Herkules rollgrinder.jpg

Machine foundation.
We can design and provide machine foundation drawing and machine installation for roll grinder machine.

Machine foundation
Roll grinder foundation
CNC machine foundation

Roll Grinder machine components

Wheel balance system.
We can provide wheel balancing system with manual balance or electronic automatic balance while grinding for roll grinder machine.

automatic wheel balancing equipment
Roll grinder manual wheel balance

Steady rest.

Steadies rest.jpg
Steady Rest roll grinder.jpg
Roll grind machine steady rest

       We can design and provide machine steady rest.

Headstock.
We can provide new headstock set for roll grinder machine.

Roll grinder headstock upgrades
Headstock for roll grinding machine

Spindle shaft, Bearing and bush.

Roll grinder spindle shaft-bush-bearing

We can design and provide spindle accessories.

CNCDesign Thailand.jpg
